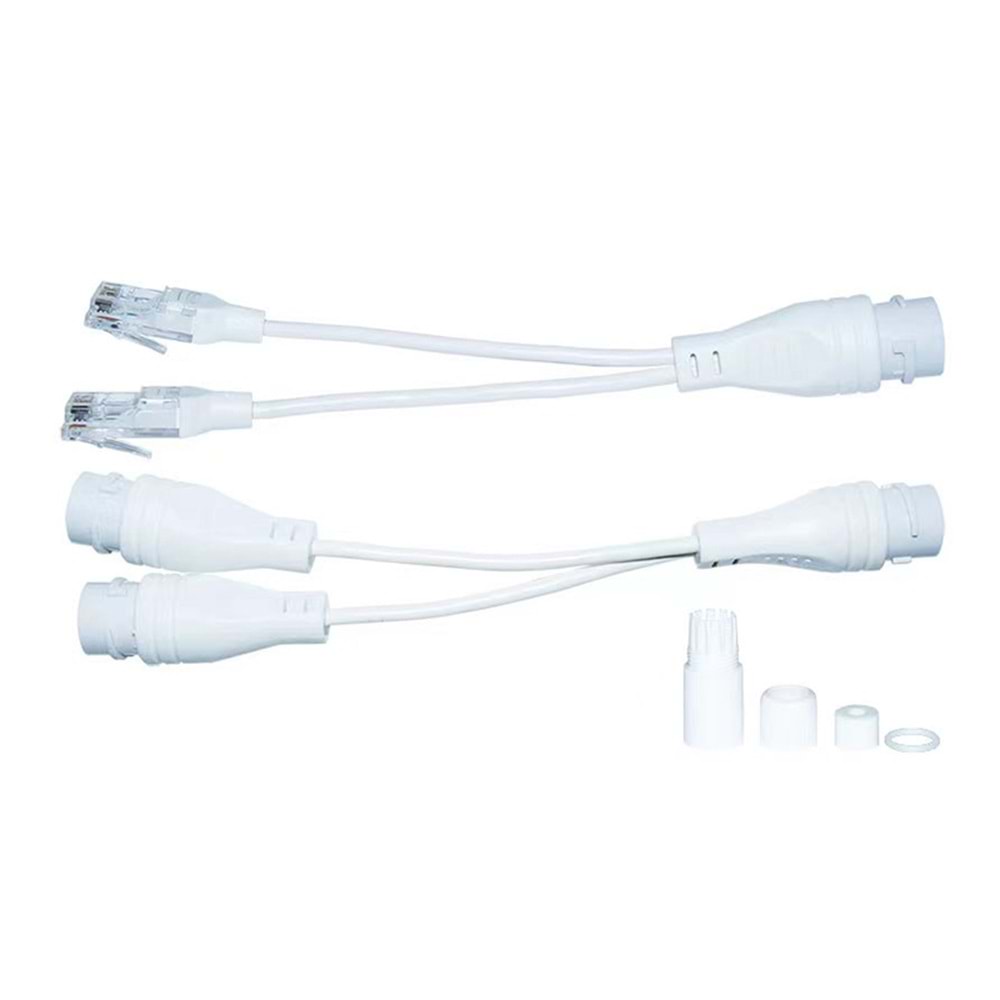

POE COMBİNER SET ( TEK CAT5/CAT6 2 POE IP KAMERA)

POE SWITCHE BAĞLAYACAĞINIZ GÖNDERİCİ 2 PORTU TEK CAT5/CAT6 KABLO İLE FARKLI BİR NOKTAYA TAŞIYIP ALICI UCA 2 KAMERA BAĞLAYIP ÇALIŞTIRABİLİR

TEKNİK DETAYARI AŞAĞIDAKİ GİBİDİR

Use to put two 10/100 ethernet circuits into one long run ethernet cable with or without PoE. Supports 2 individual 10/100 data rate connections and up to 25 watts for each(50watts total) on
CAT5e. Connect two male RJ45 to your switch, then remotely connect each female RJ45 to your camera, WIFI
or phone with CAT5e cable. Use any CAT5e cable between the two PT102W device.
It provides a low cost solution for either use case. Ethernet doubler operation is intended for
use with any 10/100 switch with our without PoE . Save the Cables, Tubes cost. And Save the installation cost and Time. Specifications:
Power sources PoE switch or injector
8 wires, 4Pair split 10/100 Connector Female RJ45
4 wire, 2pair split 10/100 connector male RJ45 with 1&2 and 3&6
Input voltage Max up to 57V
Input Current at 48V 65mA per pair-60 Watts total
Operating Temp. 0?~50?
Size 125mm Cable Length
Weight 80g
