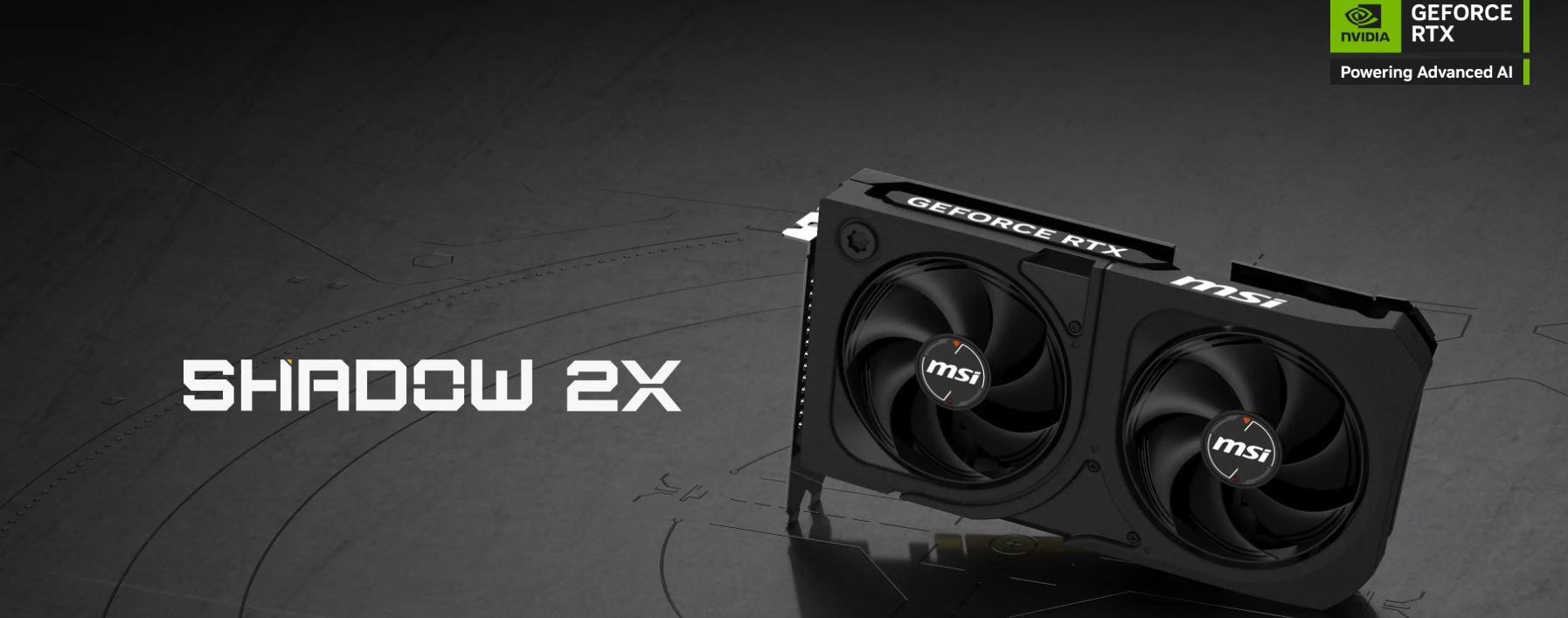

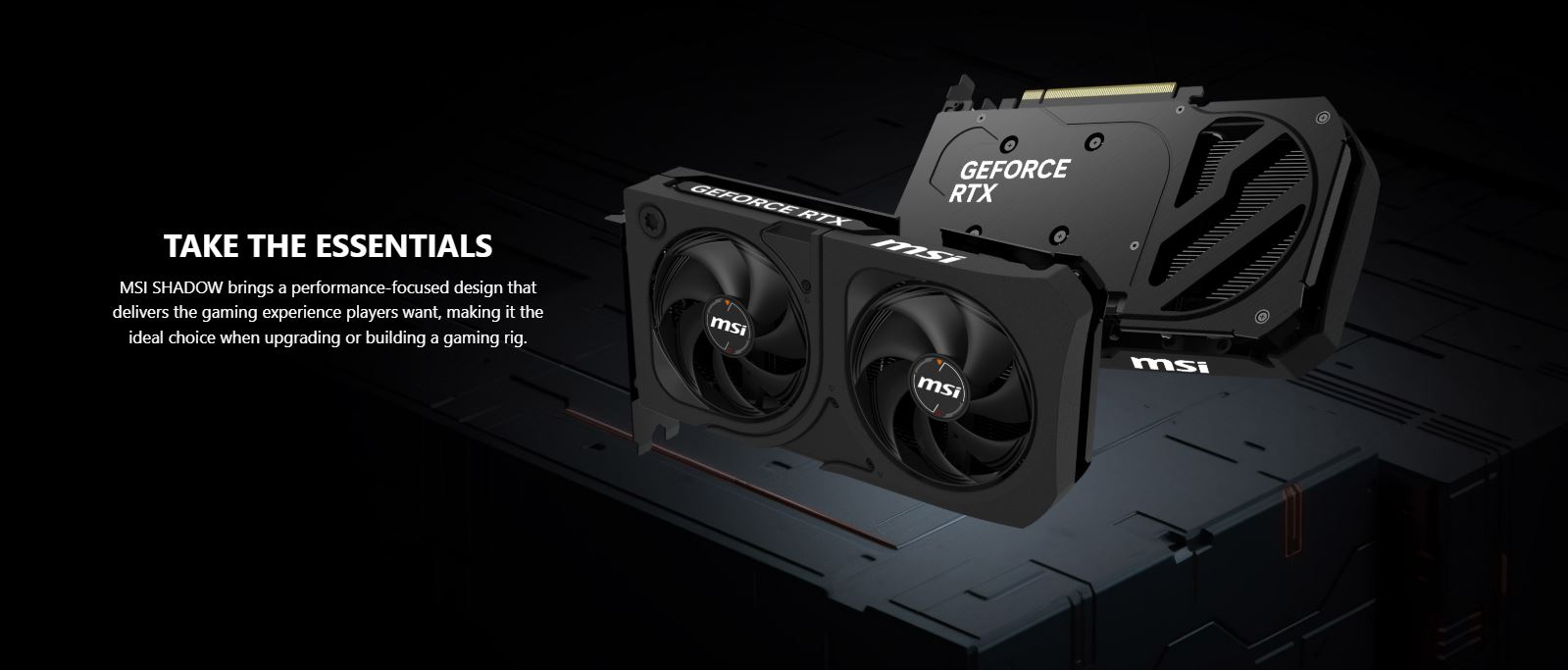

MSI RTX5060TI 16G SHADOW 2X OC 16GB GDDR7 128B DX12 3XDP-1XHDMI Ekran Kartı

GeForce RTX™ 5060 Ti 16G SHADOW 2X OC PLUS

Marketing Name
Model Name
Graphics Processing Unit
Interface
Core Clocks
CUDA® CORES
Memory Speed
Memory
Memory Bus
Output
HDCP Support
Power consumption
Power connectors
Recommended PSU
Card Dimension (mm)
Weight (Card / Package)
DirectX Version Support
OpenGL Version Support
Maximum Displays
G-SYNC® technology
Digital Maximum Resolution
GeForce RTX™ 5060 Ti 16G SHADOW 2X OC PLUS

G506T-16S2CP

NVIDIA® GeForce RTX™ 5060 Ti

PCI Express® Gen 5 x16 (uses x8)

Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz

4608 Units

28 Gbps

16GB GDDR7

128-bit

DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

Y

180 W

8-pin x 1

600 W

226 x 126 x 41 mm

578 g / 851 g

12 Ultimate

4.6

4

Y

7680 x 4320
