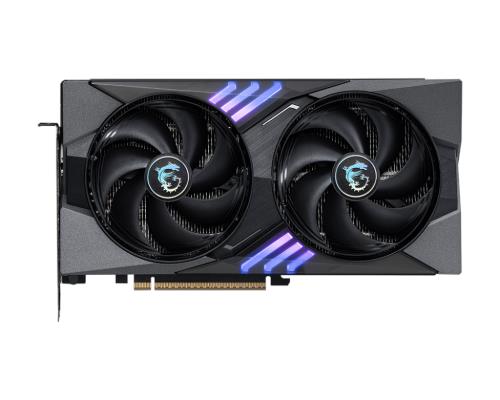

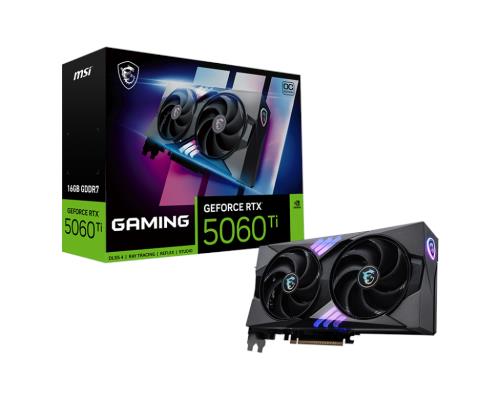

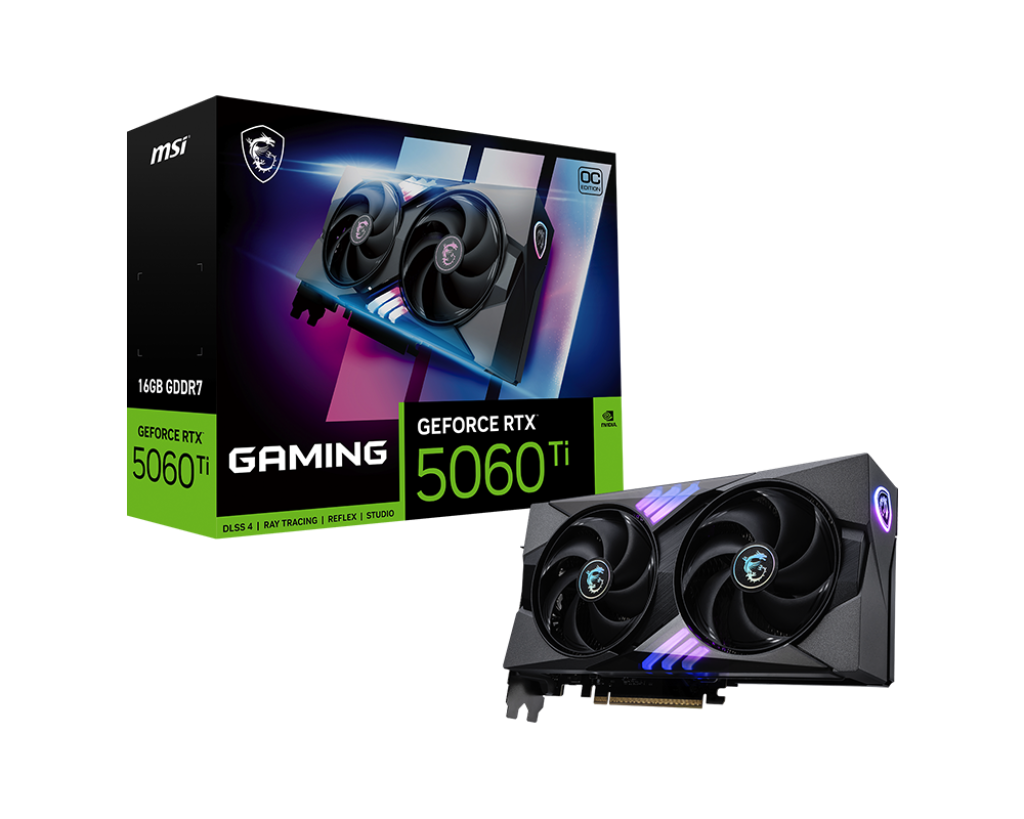

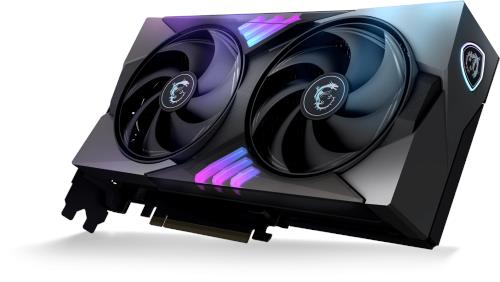

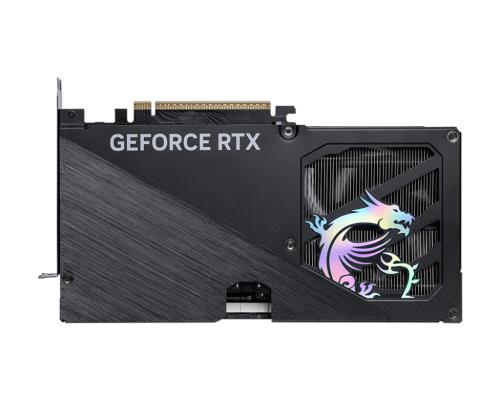

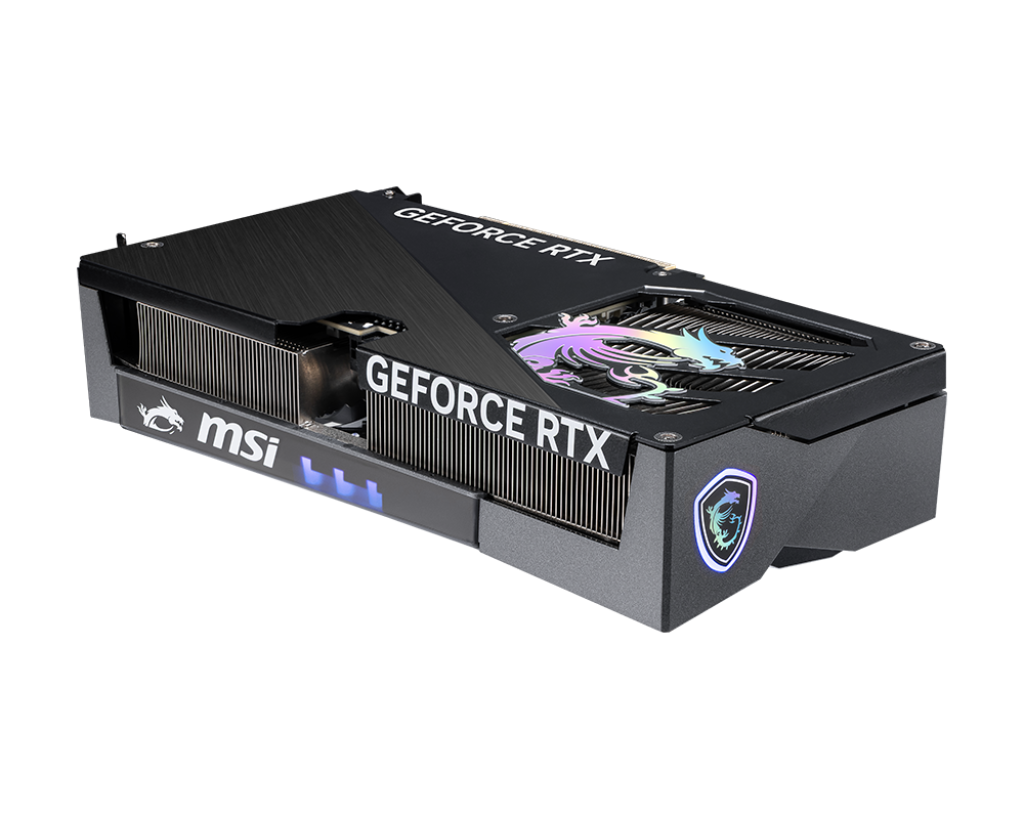

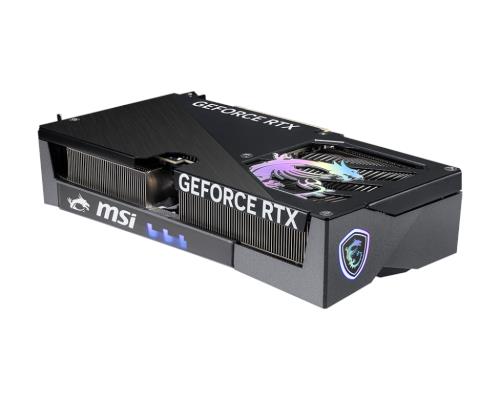

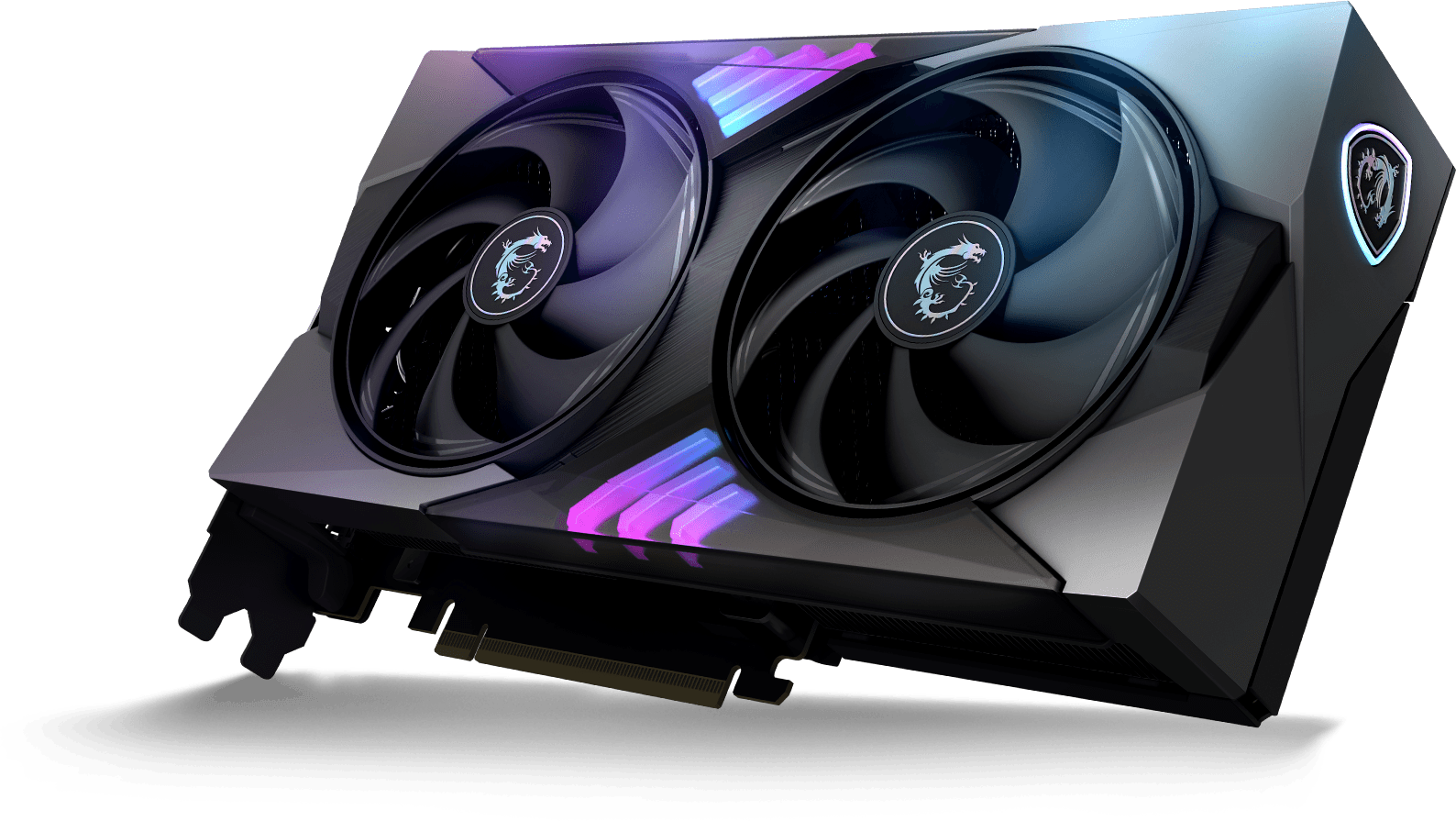

MSI RTX5060TI GAMING OC 16GB GDDR7 128B DX12 PCIE 5.0 X16 (3XDP 1XHDMI)

• Marketing Name
• Model Name
• Graphics Processing Unit
• Interface
• Core Clocks
• CUDA^® CORES
• Memory Speed
• Memory
• Memory Bus
• Output
• HDCP Support
• Power consumption
• Power connectors
• Recommended PSU
• Card Dimension (mm)
• Weight (Card / Package)
• DirectX Version Support
• OpenGL Version Support
• Maximum Displays
• G-SYNC^® technology
• Digital Maximum Resolution

GeForce RTX™ 5060 Ti 16G GAMING OC

G506T-16GC

NVIDIA® GeForce RTX™ 5060 Ti

PCI Express® Gen 5 x16 (uses x8)

Extreme Performance: 2662 MHz (MSI Center)
Boost: 2647 MHz

4608 Units

28 Gbps

16GB GDDR7

128-bit

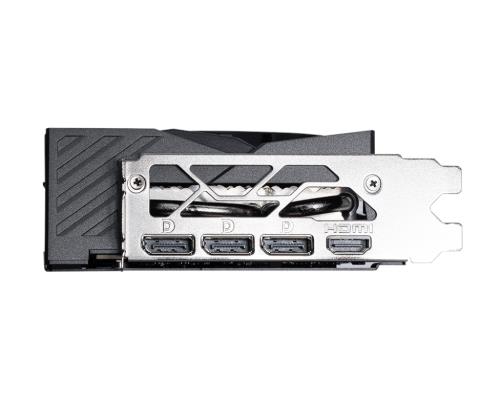

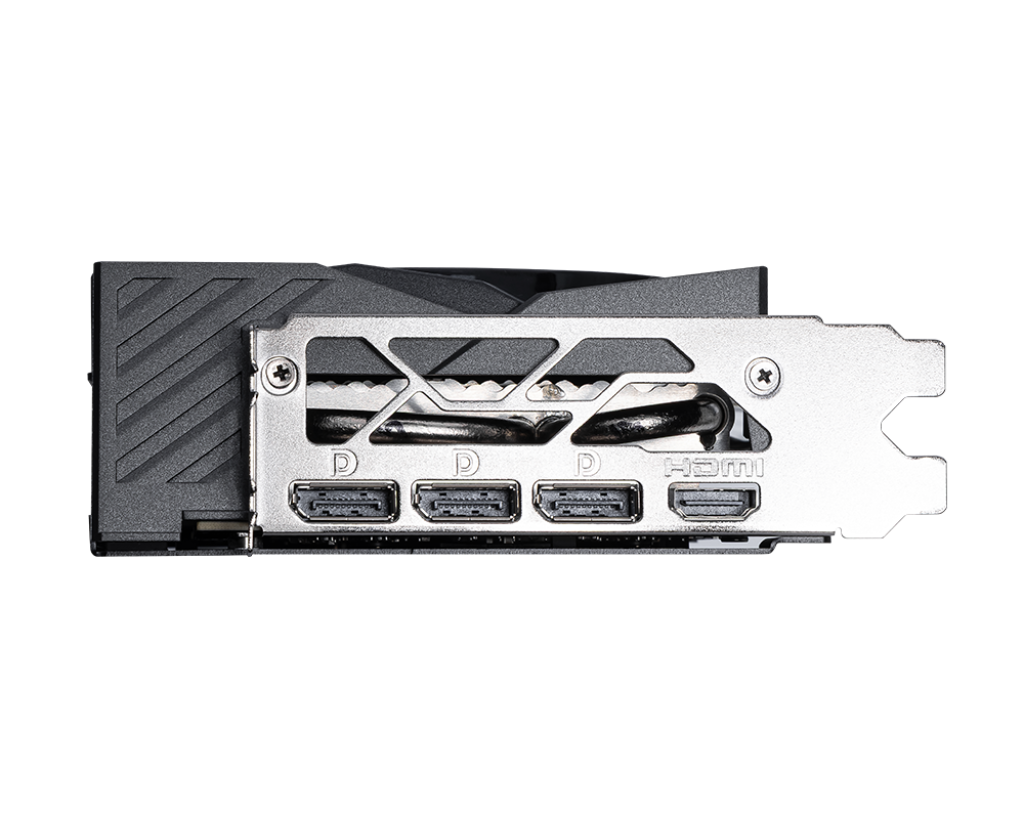

DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

Y

180 W

16-pin x 1 (ATX 3.1 PSU recommended)

600 W

247 x 135 x 51 mm

781 g / 1181 g

12 Ultimate

4.6

4

Y

7680 x 4320
