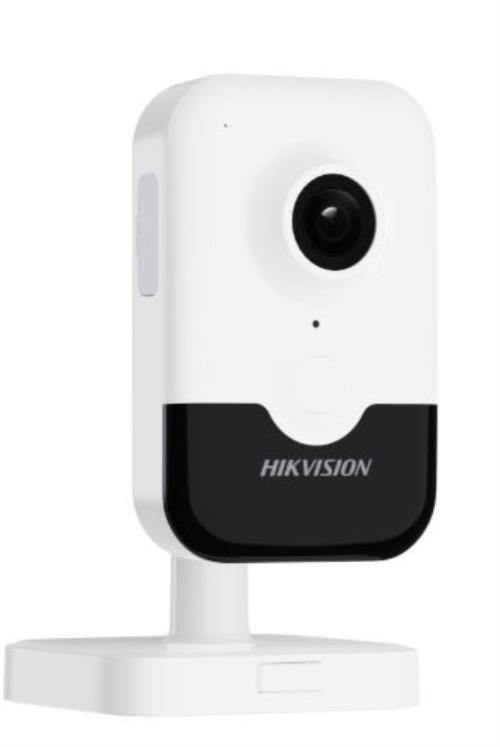

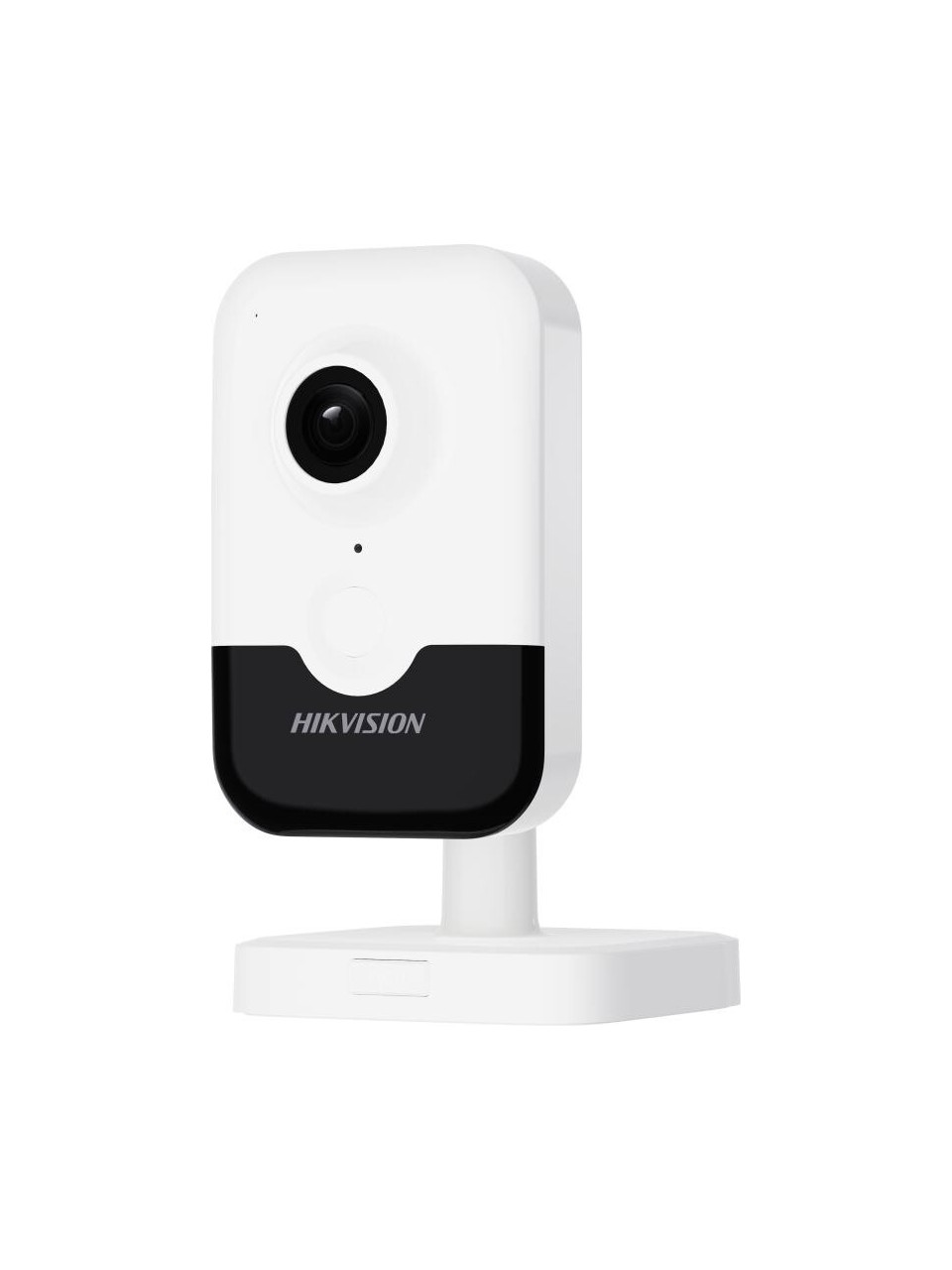

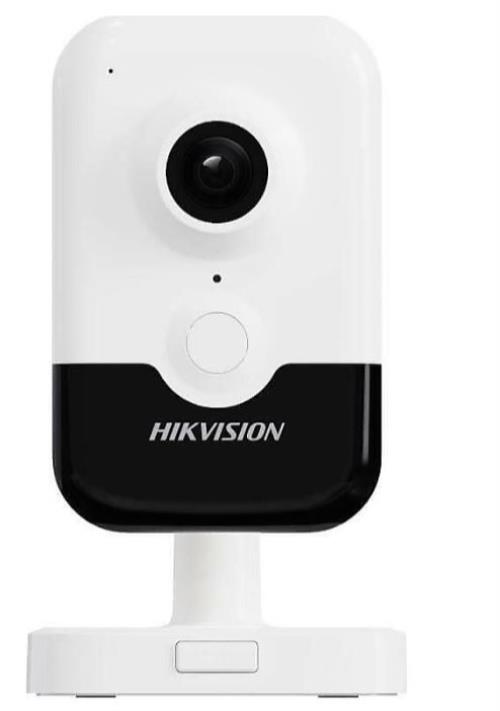

HIKVISION DS-2CD2423G2-IW 2MP 2.8MM 10MT SESLİ WİFİ POE/ONVIF CUBE KAMERA

HIKVISION DS-2CD2423G2-IW 2MP 2.8MM 10MT SESLİ WİFİ POE/ONVIF CUBE KAMERA

Kamera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 92°, vertical FOV 50°, diagonal FOV 110°

4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 89°

Aperture
F1.6
Lens Mount
M12
DORI
DORI
2.8 mm: D: 38.6 m, O: 15.3 m, R: 7.7 m, I: 3.9 m

4 mm: D: 54.8 m, O: 21.7 m, R: 11.0 m, I: 5.5 m

Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 10 m
IR Wavelength
850 nm
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)

Sub-Stream
50 Hz: 25 fps (768 × 432, 512 × 288)

60 Hz: 30 fps (768 × 432, 512 × 288)

Video Compression
Main stream: H.265/H.264

Sub-stream: H.265/H.264

Video Bit Rate
Up to 1 M bps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Audio Compression
G.711/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
Network
Simultaneous Live View
Up to 4 channels
API
ONVIF, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
User/Host
Administrator
Security
Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
Client
iVMS-4200, Hik-Connect, Hik-Partner-Pro
Wi-Fi
Encryption Mode
WPA-PSK/WPA2-PSK
Wi-Fi Protocol
IEEE 802.11b, 802.11g, 802.11n
Frequency Range
2.412 GHz to 2.472 GHz
Channel Bandwidth
20 MHz
Modulation
802.11b: CCK, QPSK, BPSK

802.11g: OFDM

802.11n: OFDM

Wireless Range
Up to 50 m (The performance varies based on actual environment)
Transfer Rate
11b: up to 54 Mbps,

11g: up to 54 Mbps,

11n: up to 150 Mbps

Wide Dynamic Range (WDR)
Digital WDR
Privacy Mask
4 programmable polygon privacy masks
Day/Night Switch
Day, Night, Auto, Schedule
Image Parameters Switch
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software
Interface
Built-in Microphone
Yes, 1 built-in microphone
Built-in Speaker
Yes, 1 built-in speaker
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human)), exception
Linkage
Upload to memory card, notify surveillance center, trigger capture, audible warning
General
Power
12 VDC, 0.4 A, max. 4.9 W, Ø2.0 mm coaxial power plug,

PoE: IEEE 802.3af, Class 3

General Function
Heartbeat, Mirror
Storage Conditions
-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
Material
Plastic
Dimension
102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Package Dimension
150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Approx. 120 g (0.3 lb.)
With Package Weight
Approx. 430 g (0.9 lb.)
Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
RF
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
Safety
CE-LVD (EN 62368-1:2014/A11:2017)
Environment
CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)
